More Sparrow Progress

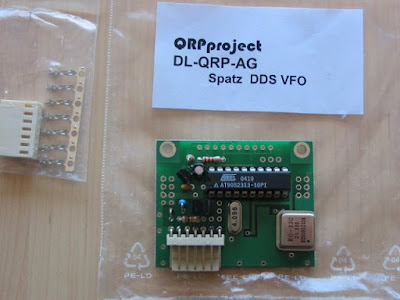

Today I finished section 4 containing the VFO mixer and frequency counter read out. This is also where the ready built DDS comes into the picture.

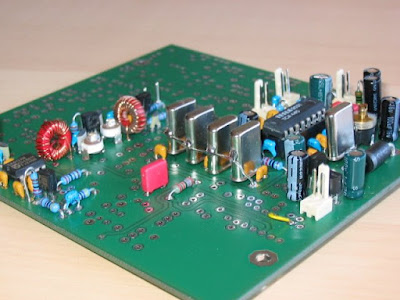

To do the functional tests I will need a signal generator and oscilloscope, which I only have in Denmark. I think I will transport the kit back to Denmark and finish it there. For your joy here are two pictures Smile
